Oxford Midi Floor Hoist

Oxford Midi Floor Hoist

Regular price $3,800.00 AUD
Regular price Sale price $3,800.00 AUD
Sale Sold out

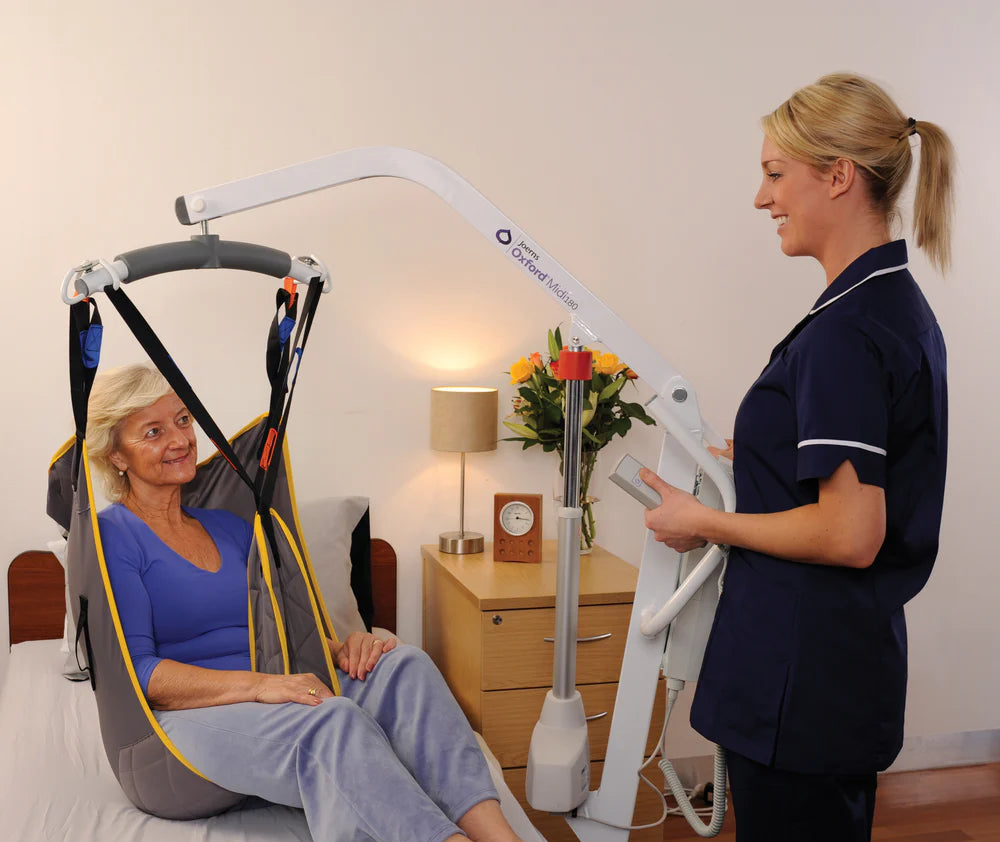

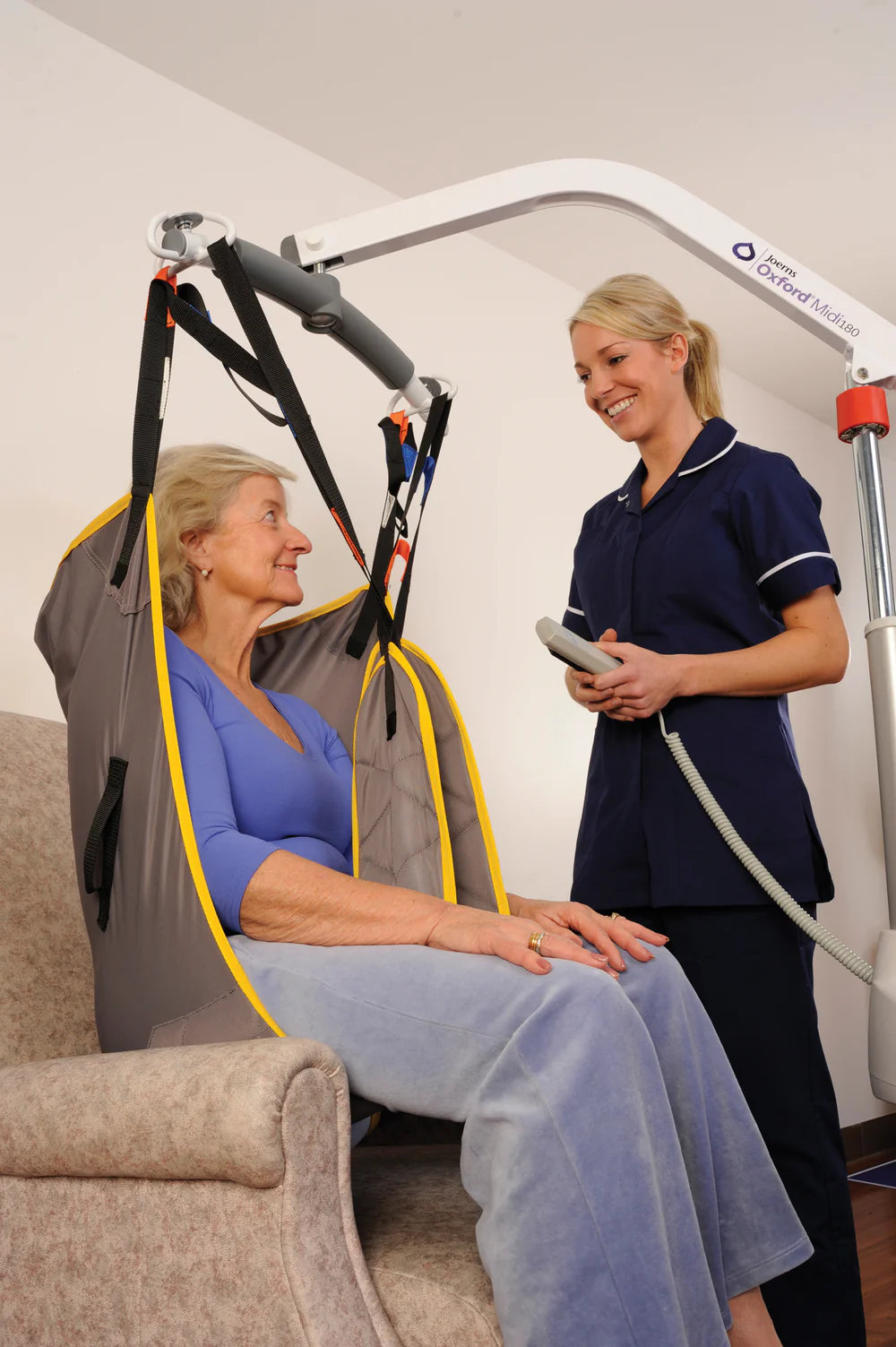

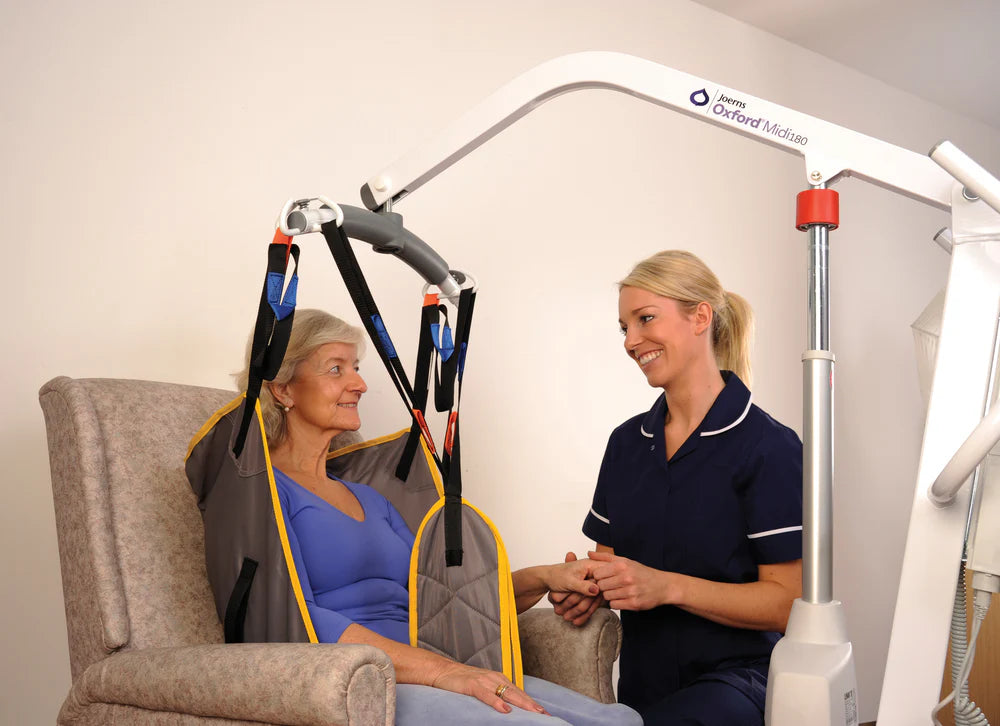

The Oxford® Midi 180 has become the ‘gold standard’ in home care, offering surprising performance for a hoist of its size. The Midi is the perfect solution for both community and nursing environments, whilst being sympathetic to the space constraints it might encounter.

Some key features included in the Midi lift include, interchangeable spreader bars, emergency descent, oversized push handle, digital weigh scale, Smart monitor, electric leg, high-grade tente castors, and an optional foot pedal leg adjustment.

Specifications

  • Safe working load 180kg / 27st / 397lbs
  • SmartTM Monitor diagnostic and service controls as standard Length 1225 mm
  • Maximum Overall Height 1840 mm
  • Minimum Overall Height 1240 mm
  • Maximum Spreader Bar Height 1660 mm
  • Minimum Spreader Bar Height 525 mm
  • Spreader Bar Height at Maximum Reach: 1060 mm
  • Spreader Bar Reach at Maximum Height: 420 mm
  • Spreader Bar Reach at Minimum Height: 440 mm
  • Maximum Reach: 656 mm
  • Turning radius 1235 mm
  • Legs Open - External Width 1170 mm
  • Legs Open - Internal Width 1070 mm
  • Legs Closed - External Width 600 mm
  • Legs Closed - Internal Width 540 mm
  • Overall Height of Legs 100 mm
  • Ground Clearance 25 mm
  • Front Twin Castors 75 mm
  • Rear Braked Castors 100 mm
  • Mast and Boom Assembly 20.5 kg
  • Base Assembly 11.5 kg
  • Total Weight 32 kg

Standards Compliance:

  • AS/NZS ISO 10535:2011, Hoists for the transfer of disabled persons
  • ARTG#308172
